Video / Power Balun
The PVD Video Transceiver with Power and Audio is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) wire.
Wire Type
Unshielded Twisted Pair: 24-16 AWG
Category Type ： 5or better
Impedance： 100 ohms
DC Loop Resistance ： 52 ohms per 1,000 ft
Differential Capacitance ： 19pF/ft max
For CCTV Use
(Designs and specifications are subject to change without notice.)

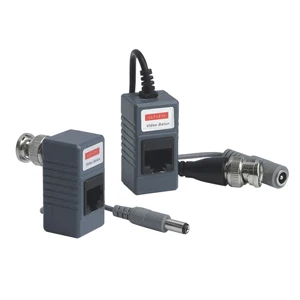

The Photos is only for reference.
