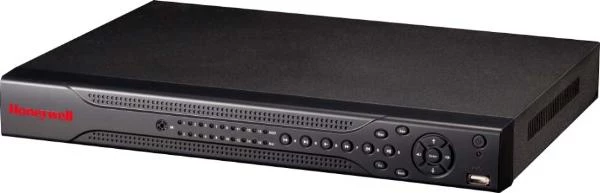

HSVR-04 Honeywell 4CH DVR
HSVR-04 Honeywell 4CH DVR
Video Compression Format H.264
Video Input: 4ch Composit video input BNC
Video Output: Composit video signal output BNC, VGA output, HDMI output
Video Recording: Real Time Mode: PAL 1-25f/s & NTSC 1-30f/s per channel
Video Resolution: Real Time Monitor: D1 704x576/704x480
1-ch: D1 704x576/704x480, CIF 352x288/352x240, QCIF 176x144/176x120
other-ch: CIF 352x288/352x240, QCIF 176x144/176x120
Video Image Quality: 6 Level Image Quality (Adjustable)
Video Configuration: Hue, brightness, contrst, saturation and gain setup
Audio Input: 4ch BNC. Audio Output: 1ch BNC.
Harddisk 1 built-in SATA port. Support 1 HDD
Recording mode: Manual, Motion Detection, Schedule, Alarm recording
Record Overwrite: when harddsik is full, system can overwrite previous video file
Playback mode: various fast play, slow play speeds, maual frame by frame playback
Backup Mode: HDD backup, USB backup and Network download backup
Network Function: View video remotely, DVR configuration, file download
Motion Detect and alarm: Various sensitivity levels
Dimensions (mm) 375mm (W) × 45mm (H) × 285mm (D)
Key Lock : Yes
IR Transmitter (Remote Control): YES
USB Mouse Control :YES
PTZ Control :YES
Mobile Enabled Digital Video Recorder
For CCTV Use
(Designs and specifications are subject to change without notice.)
The Photos is only for reference.
