Video System: NTSC / PAL (auto detection)
Video Compression Format: H.264
Video Input(Composite video signal 1 Vp-p 75Ω BNC): 8channels
Video Output (BNC): Main Monitor Output: for stable display ( BNC)
Audio Input/Output :4 audio inputs, 1 audio output (Mono)
Maximum Recording Rate (Frame): 704×480 pixels with 60 IPS <NTSC> / 704×576 pixels with 50 IPS <PAL>
Maximum Recording Rate (CIF): 352×240 pixels with 240 IPS <NTSC> / 352×288 pixels with 200 IPS <PAL>
Image Quality Setting: SUPER BEST / BEST / HIGH / NORMAL
Hard Disk Storage: Accommodates 2 SATA HDDs (1 HDD capacity up to 2TB)
Quick Search: Time / Motion / Alarm search mode
SATA Interface: Built-in
VGA Interface: Built-in
Recording Mode: Manual / Timer / Motion / Alarm / Remote
Multiplex Operation: Live display / record / playback / backup / network operations
USB Mouse Control: YES
Motion Deteclion Area: 16 × 12 grids per channel
Motion Detection Sensitivity: 3 adjustable parameters for accurate detection
Pre-alarm Recording: YES
Backup Device: USB 2.0 flash drive / Network
Web Transmitting Compression Format: H.264
Ethernet: 10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface: Licensed software “Video Viewer” / Internet Explorer, Mozilla Firefox or Google Chrome web browser /
QuickTime player (5 users access simultaneously)
*Operating System: Windows 7 / Vista / XP / 2000
Network Protocol: TCP/IP, PPPOE, DHCP and DDNS
Basic Remote Independent Operation: YES
Event Notification: By FTP & E-Mail
R.E.T.R. (Remote Event Trigger Recording): YES
IR Remote Control :YES (IR receiver built-in)
Mobile Surveillance :YES (Including iPhone, BlackBerry, WinCE & J2ME)
Picture Zoom: 2X digital zoom
PTZ Control: YES
Alarm I/O: 16 inputs, 1 output
Key Lock (Password Protection): YES
User Level: Administrator & Operator
Video Loss Detection: YES
Camera Title: Supports up to 6 letters
Video Adjustable: Hue / Saturation / Contrast / Brightness
Date Display Format: YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving: YES
Power Source (±10%): DC 19V
Power Consumption (±10%): < 64 W
Operating Temperature: 10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)** : 430(W) x 65(H) x 338(D)
System Recovery: System auto recovery after power failure
Optional Peripherals: Keyboard Controller

For CCTV Use

(Designs and specifications are subject to change without notice.)

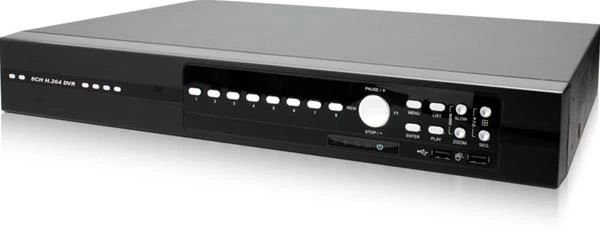

The Photos is only for reference.
